OEM Gear

OEM齒輪

Work Area

Mainly the production of pinion gears with straight tooth bevel gears and spiral bevel gears. Precision tooth grinding of custom gears will result in parts that operate quietly and wear evenly. Our gear tooth grinding capabilities include high production line capacity with the expertise of holding very tight tolerances.

工作區域

主要生產帶直齒錐齒輪和螺旋錐齒輪的小齒輪。定制齒輪的精密齒面磨削將使零件安靜運行並均勻磨損。我們的齒輪磨削能力包括高生產線能力，並具有保持非常嚴格的公差的專業知識。

Straight Bevel Gears
Maximum outside diameter：150mm
Module：0.2~2
Accuracy：DIN6~10
Materials：SNCM 415,SCM 440,S45C
We also manufacture custom gears according to specific material requirement.
ra：1.6

直齒錐齒輪

最大外徑：150mm

模塊：0.2〜2

精度：DIN6〜10

材料：SNCM 415，SCM 440，S45C

我們還根據特定材料要求製造定制齒輪。

ra：1.6

Spiral bevel gear
Maximum outside diameter：100mm
Module：0.5~3
Accuracy：DIN6~10
Materials：SNCM 415,SCM 440,S45C
We also manufacture custom gears according to specific material requirement.
ra：1.6

螺旋錐齒輪

最大外徑：100mm

模塊：0.5〜3

精度：DIN6〜10

材料：SNCM 415，SCM 440，S45C

我們還根據特定材料要求製造定制齒輪。

RA：1.6

Processing Equipment：
Hobbing machine * 7
Spiral bevel gear * 11

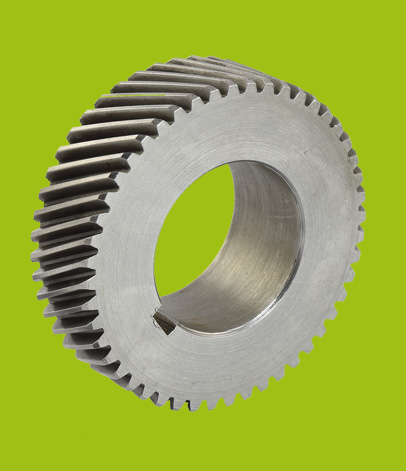

Helical gears are used for high speed, high power mechanical systems. They make less noise. Helical gears can handle more load as gear tooth is effectively large. Helical gears work perpendicularly to each other when the teeth of the helical gears are designed correctly.

加工設備：

滾齒機* 7

螺旋錐齒輪* 11

斜齒輪用於高速，高功率機械系統。它們減少了噪音。當齒輪齒非常大時，斜齒輪可以承受更多的負載。當正確設計斜齒輪的齒時，斜齒輪彼此垂直地工作。
